Spacing APEX items

Von Tobias Arnhold 3.13.2009
Did you ever experienced the problem when you have a couple of items in the same line/row in a HTML region and you have a select list (in the next row) which becomes so Hugh that the upper items places more and more to the right. It just looks ugly and the select list value
normally changes dynamically.
What to do?
First we need to bring a logical barrier in between the line breaks.

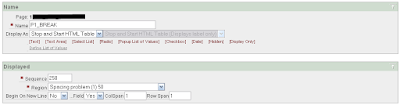

Using a "Stop and Start HTML Table" object in between text items and select list.
It will look like that:
Result: Just the text label is incorrect anymore.Now we have two choices:1. Using &nbsp object until it fits.
Problem: The more text different there are, the more &nbsp you will need.

2. Creating a SPACER item
Create a new display only item called :P1_SPACER in front of the first text item.Now add the following text under "Element Table Cell Attributes" > style="width:200px"Edit the pixel value so that it fits into your page.

The region items will be listed like that:
In case you still have some problem with different browser presentations look at my last post.

Update 17.03.2009:
Just tested a really good hint from Patrick.
Using the ColSpan option in the select list item saves all other steps above. Set the value for ColSpan (in my case) to 3 and the same result appears. Good that I never stop learning...

Post Tags:

2 Comments " Spacing APEX items "

Patrick Wolf 16 March, 2009 21:25

Hi Tobias,

why don't you just set "Colspan" to 5 for your P1_SELECT_LIST1 page item? That will instruct APEX to make one big cell for the select list which uses the rest of the cells on the same row. There are 6 cells in total. You can use the Web Developer Firefox plugin to show them with the Outline feature.


Tobias Arnhold 17 March, 2009 08:08

Hi Patrick,

thanks for the advice. I added the solution to the blog entry. Sometimes thing could be so damn easy...
